ECS Inc.成立于1980年,總部位于美國雷克薩斯州,39年來一直是頻率元器件控制領域的行業領導者.ECS Inc以提供最新的新興技術而聞名.其中產品種類繁多,包括晶體,石英晶體振蕩器,石英晶體濾波器.TCXO晶振,OCXO晶振和金屬功率電感器.這些所有產品都非常適合汽車,醫療以及無線/可穿戴應用.

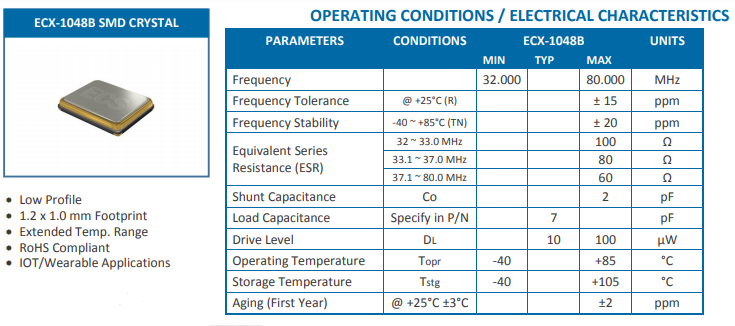

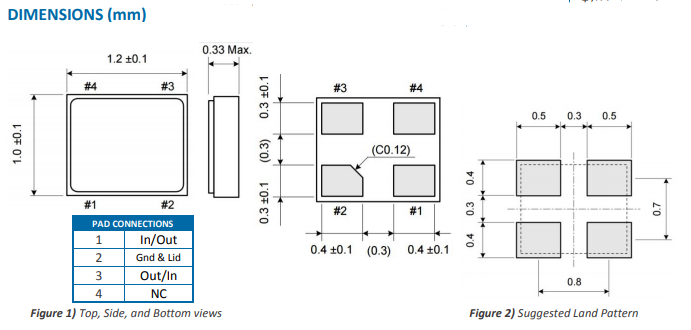

　　越小型的ECX-1048B晶振是ECS Inc最小巧的緊湊型石英晶振.尺寸僅為1.2*1.0*0.33mm,陶瓷封裝頻率可從32.000MHZ到80.000MHZ,在25度下頻率偏差可達+-15PPM,在高溫-40~+85度的情況下頻率穩定度仍可達+-20ppm.負載電容常用的是7PF,聯系我們可以根據所需要求訂制相同參數產品.

　　ECS-320-7-48B-AEM-TR,ECS-320-7-48B-AEY-TR,ECS-320-7-48B-AEN-TR,ECS-320-7-48B-JEM-TR,ECS-320-7-48B-JEY-TR,ECS-320-7-48B-JEN-TR,伊西斯晶振部分型號,ECS-320-7-48B-REM-TR,ECS-320-7-48B-REY-TR,ECS-320-7-48B-REN-TR,ECS-320-7-48B-CEM-TR,ECS-320-7-48B-CEY-TR,ECS-320-7-48B-CEN-TR,ECS-320-7-48B-AGM-TR,ECS-320-7-48B-AGY-TR,ECS-320-7-48B-AGN-TR,ECS-320-7-48B-AHM-TR,ECS-320-7-48B-AHY-TR,ECS-320-7-48B-AHN-TR,ECS-320-7-48B-ATM-TR,

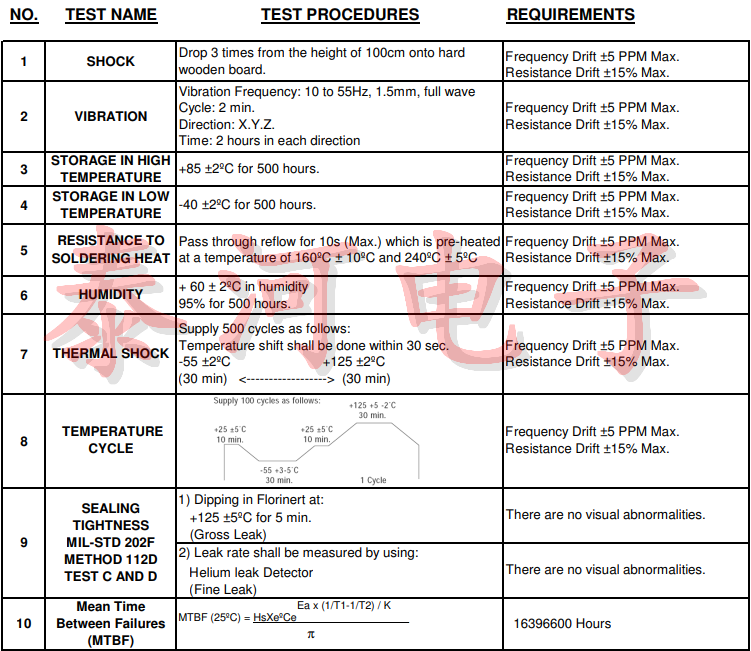

　　另外,為大家準備了ECX-1048晶振型號可靠性測試程序,以僅各位參考.

　　ECS-320-7-48B-ATY-TR,ECS-320-7-48B-ATN-TR,ECS-320-7-48B-AWM-TR,ECS-320-7-48B-AWY-TR,ECS-320-7-48B-AWN-TR,ECS-320-7-48B-AKM-TR,ECS-320-7-48B-AKY-TR,ECS-320-7-48B-AKN-TR,ECS-320-7-48B-JGM-TR,ECS-320-7-48B-JGY-TR,ECS-320-7-48B-JGN-TR,ECS-320-7-48B-JHM-TR,ECS-320-7-48B-JHY-TR,ECS-320-7-48B-JHN-TR,ECS-320-7-48B-JTM-TR,ECS-320-7-48B-JTY-TR,ECS-320-7-48B-JTN-TR,ECS-320-7-48B-JWM-TR,ECS-320-7-48B-JWY-TR,ECS-320-7-48B-JWN-TR,ECS-320-7-48B-JKM-TR,ECS-320-7-48B-JKY-TR,ECS-320-7-48B-JKN-TR,ECS-320-7-48B-RGM-TR,ECS-320-7-48B-RGY-TR,ECS-320-7-48B-RGN-TR,ECS-320-7-48B-RHM-TR
